Antenna position correction tutorial¶

extract_locit and locit are utilities designed to help determine antenna position shifts after antenna relocation. To do so they rely on a phase gain calibration table created by CASA from antenna pointing data. The process in CASA consists of: 1. split out the actual pointing data from the original pointing measurement set (MS), it might contain data taken while the antennas are still slewing. 2. fringe_fit the MS using a single source with no delay rates, this is done to flatten a spectral window. 3. apply_cal the fringe_fit solution. 4. Channel average the MS using split. 5. Compute an average phase gain solution for each source using gaincal

To simplify the process in CASA a script is distributed within astrohack that the user can simply fill in the parameters for the data reduction and then run it within CASA.

[1]:

import os

try:
    import astrohack

    print("AstroHACK version", astrohack.__version__, "already installed.")
except ImportError as e:
    print(e)
    print("Installing AstroHACK")

    os.system("pip install astrohack")

    import astrohack

    print("astrohack version", astrohack.__version__, " installed.")

AstroHACK version 1.0.1 already installed.

Download Tutorial data¶

[2]:

# The Cal table used here is a placeholder, there should be a better dataset to be used with the tutorial
import toolviper

toolviper.utils.data.download(file="locit-input-pha.cal", folder="data")

[2026-03-19 15:41:24,565]     INFO   astrohack:  Module path: /export/home/arya/miniforge3/envs/casadev/lib/python3.12/site-packages/toolviper
[2026-03-19 15:41:24,568]     INFO   astrohack:  Downloading from [cloudflare] ....

  Download List
 ─────────────────────
  locit-input-pha.cal

Position and locit Data File API¶

As part of the astroHACK API a set of functions to allow users to easily open on disk locit and position files has been provided. Each function takes an astroHACK locit or position file name as an argument and returns an object related to the given file type. Each object allows the user to access data via dictionary keys with values consisting of the relevant dataset. Each object also provides a summary() helper function to list available keys for each file. An example call for each file type is show below and the API documentation for all data-io functions can be found here.

from astrohack import open_locit
from astrohack import open_position

locit_data = open_locit(file='./data/locit-input-pha.locit.zarr')
position_data = open_position(file='./data/locit-input-pha.position.zarr')

Setup Dask Local Cluster¶

The local Dask client handles scheduling and worker managment for the parallelization. The user has the option of choosing the number of cores and memory allocations for each worker howerver, we recommend a minimum of 1Gb per core with standard settings.

A significant amount of information related to the client and scheduling can be found using the Dask Dashboard. This is a built-in dashboard native to Dask and allows the user to monitor the workers during processing. This is especially useful for profilling. For those that are interested in working soley within Jupyterlab a dashboard extension is available for Jupyterlab.

dashboard

[3]:

from toolviper.dask.client import local_client

parallel = True

if parallel:
    client = local_client(cores=4, memory_limit="1GB")
    print(client)
else:
    client = None

[2026-03-19 15:41:24,972]     INFO   astrohack:  Module path: /export/home/arya/miniforge3/envs/casadev/lib/python3.12/site-packages/toolviper
[2026-03-19 15:41:24,976]  WARNING   astrohack:  It is recommended that the local cache directory be set using the dask_local_dir parameter.
[2026-03-19 15:41:25,906]     INFO   astrohack:  Client <MenrvaClient: 'tcp://127.0.0.1:36957' processes=4 threads=4, memory=3.73 GiB>
<MenrvaClient: 'tcp://127.0.0.1:36957' processes=4 threads=4, memory=3.73 GiB>

Locit¶

After we have inspected the locit_mds object we can now use locit to obtain antenna position corrections. In this dataset a single antenna, ea06 has been moved, and hence we could skip the other antennas and get position corrections for only it and the reference antenna, ea28. But here we will be getting corrections for all antennas as this can help point out systematic errors with the dataset, such as choosing a bad reference antenna. We include the reference antenna in the fit as a sanity check, the position corrections for the reference antenna, as well as the fixed delay and delay rate are by construction, 0, if they aren’t there is something wrong with the code.

[12]:

%%time
from astrohack import locit

position_mds = locit(
    locit_name,
    position_name=position_name,  # Name of the position file to be created by locit
    elevation_limit=10.0,  # Elevation under which no sources are considered
    polarization="both",  # Combine both R and L polarization phase gains for increased SNR
    fit_engine="scipy",  # Fit data using scipy
    fit_kterm=False,
    fit_delay_rate=True,  # Fit delay rate
    ant="all",  # Select all antennas
    ddi="all",  # Select all DDIs
    combine_ddis="simple",  # Combine delays from all DDIs to obtain a single solution with increased SNR
    parallel=parallel,  # Do fitting in parallel
    overwrite=True,  # Overwrite previously created position file
)

[2026-03-19 15:41:28,946]     INFO   astrohack:  Module path: /export/home/arya/work/Holography-1022/astrohack/src/astrohack
[2026-03-19 15:41:28,950]     INFO   astrohack:  Creating output file name: ./data/locit-input-pha.position.zarr
[2026-03-19 15:41:34,420]     INFO   astrohack:  Consolidating ./data/locit-input-pha.position.zarr...
CPU times: user 2.64 s, sys: 83.9 ms, total: 2.73 s
Wall time: 5.59 s

locit creates a file that is called a position file. This file contains the delays, and the fitted delay model for each antenna

locit also returns the opened position file as a position_mds object. The first step in interacting with the position_mds object is calling its summary

[13]:

position_mds.summary()

################################################################################
###                               Summary for:                               ###
###                   ./data/locit-input-pha.position.zarr                   ###
################################################################################

Data origin:
creation_time:    2026-03-19 15:41:29 MDT
creator_function: locit
origin:           astrohack
version:          1.0.1

Input Parameters:
+-----------------+--------------------------------------+
| Parameter       | Value                                |
+-----------------+--------------------------------------+
| ant             | all                                  |
| combine_ddis    | simple                               |
| ddi             | all                                  |
| elevation_limit | 10.0                                 |
| fit_delay_rate  | True                                 |
| fit_engine      | scipy                                |
| fit_kterm       | False                                |
| locit_name      | ./data/locit-input-pha.locit.zarr    |
| overwrite       | True                                 |
| parallel        | True                                 |
| polarization    | both                                 |
| position_name   | ./data/locit-input-pha.position.zarr |
+-----------------+--------------------------------------+

Available methods:
+------------------------------+-----------------------------------------------+
| Methods                      | Description                                   |
+------------------------------+-----------------------------------------------+
| add_node                     | Add a node to the data tree file structure,   |
|                              | however this node is not yet consolidated     |
|                              | into the data tree         structure,         |
|                              | consolidate must be called to integrate all   |
|                              | nodes writen by add_node onto the tree        |
|                              | structure.                                    |
| consolidate                  | Traverse own file structure on disk           |
|                              | consolidating metadata to create a unified    |
|                              | data tree entity.                             |
| create_from_input_parameters | Create an AstrohackBaseFile object from a     |
|                              | filename and initializes xdtree root          |
|                              | attributes.                                   |
| export_locit_fit_results     | Export antenna position fit results to a text |
|                              | file.                                         |
| export_results_to_parminator | Export antenna position fit results to a VLA  |
|                              | parminator file.                              |
| is_close_to                  | Tests if self and other_mds are close to each |
|                              | other.                                        |
| items                        | Get children items                            |
| keys                         | Get children keys                             |
| open                         | Open Base file.                               |
| plot_delays                  | Plot the delays used for antenna position     |
|                              | fitting and optionally the resulting fit.     |
| plot_position_corrections    | Plot Antenna position corrections on an array |
|                              | configuration plot                            |
| plot_sky_coverage            | Plot the sky coverage of the data used for    |
|                              | antenna position fitting                      |
| summary                      | Prints summary of this Astrohack File object, |
|                              | with available data, attributes and methods   |
| values                       | Get children values                           |
| write                        | Write mds to disk by saving the data tree to  |
|                              | a file                                        |
+------------------------------+-----------------------------------------------+

Data Contents:
+----------+
| Antenna  |
+----------+
| ant_ea01 |
| ant_ea02 |
| ant_ea04 |
| ant_ea05 |
| ant_ea06 |
| ant_ea07 |
| ant_ea08 |
| ant_ea09 |
| ant_ea10 |
| ant_ea11 |
| ant_ea12 |
| ant_ea13 |
| ant_ea15 |
| ant_ea16 |
| ant_ea17 |
| ant_ea18 |
| ant_ea19 |
| ant_ea20 |
| ant_ea21 |
| ant_ea22 |
| ant_ea23 |
| ant_ea24 |
| ant_ea25 |
| ant_ea26 |
| ant_ea27 |
| ant_ea28 |
+----------+

From the summary we can see that the position file contains simply 2 antennas and no DDIs, as well as 4 different methods: - export_fit_results exports the antenna position corrections to an ascii file. - plot_sky_coverage plots the sky coverage for an antenna and DDI (if present). - plot_delays plots the measured delays as a function of time, hour angle, declination and elevation, - plot_position_corrections Plots the position corrections on an array plot, making it easier to identify systematics

To inspect the data contained in the position file for an antenna we can then simply do:

[14]:

position_mds["ant_ea06"]

[14]:

<xarray.DataTree 'ant_ea06'>
Group: /ant_ea06
    Dimensions:      (time: 110)
    Coordinates:
      * time         (time) float64 880B 0.0 0.002234 0.004711 ... 0.07838 0.07992
    Data variables:
        DECLINATION  (time) float64 880B dask.array<chunksize=(110,), meta=np.ndarray>
        DELAYS       (time) float32 440B dask.array<chunksize=(110,), meta=np.ndarray>
        ELEVATION    (time) float64 880B dask.array<chunksize=(110,), meta=np.ndarray>
        HOUR_ANGLE   (time) float64 880B dask.array<chunksize=(110,), meta=np.ndarray>
        LST          (time) float64 880B dask.array<chunksize=(110,), meta=np.ndarray>
        MODEL        (time) float64 880B dask.array<chunksize=(110,), meta=np.ndarray>
    Attributes:
        antenna_info:       {'geocentric_position': [-1602152.0314, -5042031.7101...
        chi_squared:        3.4313971850101646e-23
        elevation_limit:    0.17453292519943295
        fixed_delay_error:  2.133277290921498e-12
        fixed_delay_fit:    2.5331244932983884e-11
        frequency:          [8223000000.0, 8823000000.0]
        polarization:       both
        position_error:     [1.752882019342707e-12, 1.409076320996646e-12, 1.5522...
        position_fit:       [-2.989452238023951e-11, -1.2258925779533704e-11, -5....
        rate_error:         2.7610883407111092e-11
        rate_fit:           8.518923662602404e-12

The following plot of the sky coverage of the sources for antenna ea06, gives us an idea of how good our results can be. From it we see that basically all possible hour-angles and declinations are covered, which implies that the position correction determinations are as good as they can be given the observing conditions are good and stable enough.

Weather may complicate this measurement by introducing anisotropic and time dependant delays, limiting the methods accuracy.

[15]:

position_plot_folder = "position_mds_exports"

position_mds.plot_sky_coverage(
    position_plot_folder,  # Folder to contain plot
    ant="ea06",  # Plot only antenna ea06
    ddi="all",  # DDI selection irrelevant because we are combining DDIs
    time_unit="hour",  # Unit for observation duration
    angle_unit="deg",  # Unit for sky coordinates
    display=True,
    parallel=parallel
)

[2026-03-19 15:41:34,559]     INFO   astrohack:  Module path: /export/home/arya/work/Holography-1022/astrohack/src/astrohack

Below we export the fit results to an ascii file and display it for analysis. In it we can see that the results for the reference antenna are all 0 and the delay RMS is very small, which is indeed what is expected.

[16]:

position_export_folder = "position_mds_exports"

position_mds.export_locit_fit_results(
    position_export_folder,  # Folder to contain antenna position corrections file
    ant="all",  # See results for all antennas
    position_unit="mm",  # Unit for the position corrections
    delay_unit="nsec",  # Unit for delays
    time_unit="hour",  # Unit for delay rate denominator
)

[2026-03-19 15:41:35,990]     INFO   astrohack:  Module path: /export/home/arya/work/Holography-1022/astrohack/src/astrohack
+------------+---------+------------+-----------+-------------------+---------------+---------------+---------------+-------------------+
|  Antenna   | Station | RMS [nsec] | RMS [deg] |  F. delay [nsec]  | X offset [mm] | Y offset [mm] | Z offset [mm] |  Rate [nsec/hour] |
+------------+---------+------------+-----------+-------------------+---------------+---------------+---------------+-------------------+
|    ea01    |   W32   |  1.57e-02  |    48.1   |  0.0153 ±  0.0056 |   0.6 ±  1.1  |   5.5 ±  1.4  |  -1.6 ±  1.2  | -0.0001 ±  0.0031 |
|    ea02    |   N72   |  1.71e-02  |    52.5   |  0.0290 ±  0.0062 |   3.4 ±  1.2  |   7.6 ±  1.5  |  -7.0 ±  1.3  | -0.0020 ±  0.0034 |
|    ea04    |   E48   |  2.04e-02  |    62.7   | -0.0346 ±  0.0074 |   3.6 ±  1.5  |  -3.9 ±  1.8  |   3.3 ±  1.6  |  0.0073 ±  0.0040 |
|    ea05    |   W40   |  1.45e-02  |    44.6   |  0.0108 ±  0.0052 |   2.6 ±  1.1  |   3.4 ±  1.3  |  -1.1 ±  1.1  | -0.0005 ±  0.0028 |
|    ea06    |   MAS   |  5.86e-03  |    18.0   |  0.0253 ±  0.0021 |  -0.8 ±  0.4  |   9.7 ±  0.5  |  -1.5 ±  0.5  |  0.0004 ±  0.0012 |
|    ea07    |   E16   |  1.19e-02  |    36.6   | -0.0002 ±  0.0043 |   1.4 ±  0.9  |  -0.7 ±  1.0  |  -1.2 ±  0.9  |  0.0048 ±  0.0023 |
|    ea08    |   N56   |  1.87e-02  |    57.5   |  0.0048 ±  0.0069 |  -6.2 ±  1.4  |   1.2 ±  1.7  |   1.8 ±  1.5  | -0.0046 ±  0.0037 |
|    ea09    |   W24   |  1.29e-02  |    39.7   |  0.0170 ±  0.0047 |  -1.8 ±  0.9  |   5.0 ±  1.1  |  -3.1 ±  1.0  | -0.0014 ±  0.0025 |
|    ea10    |   N40   |  1.34e-02  |    41.0   |  0.0026 ±  0.0048 |  -3.5 ±  1.0  |  -0.8 ±  1.2  |  -2.8 ±  1.0  |  0.0015 ±  0.0026 |
|    ea11    |   W56   |  1.91e-02  |    58.5   |  0.0014 ±  0.0069 |   8.7 ±  1.4  |   4.4 ±  1.7  |  -0.4 ±  1.5  |  0.0069 ±  0.0037 |
|    ea12    |   E08   |  9.89e-03  |    30.3   | -0.0079 ±  0.0036 |  -0.2 ±  0.7  |  -1.4 ±  0.9  |   0.5 ±  0.8  |  0.0007 ±  0.0019 |
|    ea13    |   W16   |  9.31e-03  |    28.6   |  0.0114 ±  0.0034 |  -0.7 ±  0.7  |   3.3 ±  0.8  |  -1.2 ±  0.7  | -0.0008 ±  0.0018 |
|    ea15    |   N16   |  1.03e-02  |    31.7   | -0.0044 ±  0.0037 |  -1.2 ±  0.7  |  -1.2 ±  0.9  |   1.3 ±  0.8  |  0.0036 ±  0.0020 |
|    ea16    |   E24   |  1.01e-02  |    30.9   | -0.0232 ±  0.0037 |   0.6 ±  0.7  |  -0.5 ±  0.9  |   2.6 ±  0.8  |  0.0125 ±  0.0020 |
|    ea17    |   N64   |  1.86e-02  |    57.1   |  0.0317 ±  0.0069 |   2.9 ±  1.4  |   7.2 ±  1.7  |  -2.4 ±  1.5  | -0.0094 ±  0.0037 |
|    ea18    |   N32   |  9.77e-03  |    30.0   | -0.0150 ±  0.0035 |  -3.6 ±  0.7  |  -3.9 ±  0.9  |   0.4 ±  0.8  |  0.0028 ±  0.0019 |
|    ea19    |   E32   |  9.90e-03  |    30.4   | -0.0251 ±  0.0037 |  -1.4 ±  0.7  |   0.5 ±  0.9  |   0.7 ±  0.8  |  0.0120 ±  0.0019 |
|    ea20    |   W64   |  1.34e-02  |    41.1   | -0.0121 ±  0.0048 |   8.5 ±  1.0  |   4.8 ±  1.2  |   1.6 ±  1.0  |  0.0142 ±  0.0026 |
|    ea21    |   E72   |  2.10e-02  |    64.3   | -0.0187 ±  0.0075 |   4.7 ±  1.5  |  -4.8 ±  1.8  |   1.9 ±  1.6  |  0.0058 ±  0.0041 |
|    ea22    |   N24   |  9.14e-03  |    28.0   | -0.0144 ±  0.0033 |  -2.1 ±  0.7  |  -4.9 ±  0.8  |   0.6 ±  0.7  |  0.0042 ±  0.0018 |
|    ea23    |   N08   |  9.80e-03  |    30.1   |  0.0063 ±  0.0035 |  -0.8 ±  0.7  |   1.6 ±  0.9  |  -1.3 ±  0.8  |  0.0014 ±  0.0019 |
|    ea24    |   W72   |  2.81e-02  |    86.1   | -0.0055 ±  0.0101 |   4.8 ±  2.0  |   1.4 ±  2.5  |   5.6 ±  2.2  | -0.0060 ±  0.0055 |
|    ea25    |   E56   |  1.71e-02  |    52.4   | -0.0258 ±  0.0061 |   3.2 ±  1.2  |  -2.9 ±  1.5  |   0.8 ±  1.3  |  0.0143 ±  0.0033 |
|    ea26    |   W48   |  1.92e-02  |    58.8   | -0.0154 ±  0.0069 |   2.0 ±  1.4  |   2.1 ±  1.7  |   6.4 ±  1.5  |  0.0056 ±  0.0038 |
|    ea27    |   E40   |  1.00e-02  |    30.8   | -0.0420 ±  0.0037 |  -1.3 ±  0.7  |  -5.3 ±  0.9  |   2.3 ±  0.8  |  0.0138 ±  0.0020 |
| ea28 (ref) |   W08   |  5.94e-11  |     0.0   |  0.0000 ±  0.0000 |  -0.0 ±  0.0  |  -0.0 ±  0.0  |  -0.0 ±  0.0  | -0.0000 ±  0.0000 |
+------------+---------+------------+-----------+-------------------+---------------+---------------+---------------+-------------------+

Now we plot the delays and the delay model that was fitted with locit. From this plot we can see that model delays agree very well with the observed delays leading to a good confidence in the position corrections derived with locit.

[17]:

position_mds.plot_delays(
    position_plot_folder,  # Folder to contain plot
    ant="ea06",  # Plot only antenna ea06
    ddi="all",  # DDI selection irrelevant because we are combining DDIs
    time_unit="hour",  # Unit for observation duration
    angle_unit="deg",  # Unit for sky coordinates
    delay_unit="nsec",  # Unit for delays
    plot_model=True,  # Plot fitted delay model
    display=True,
    parallel=parallel
)

[2026-03-19 15:41:36,004]     INFO   astrohack:  Module path: /export/home/arya/work/Holography-1022/astrohack/src/astrohack

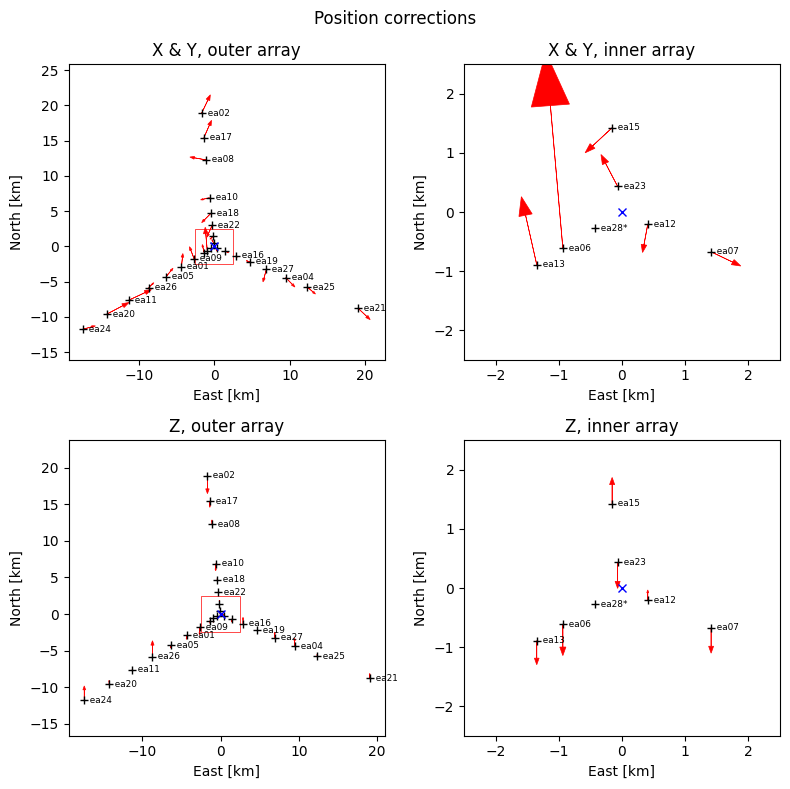

One extra way to check for systematic errors in antenna position determinations is to plot the corrections for the whole array. If all the corrections point the same way this might be an indication that the chosen reference_antenna has an error in its position.

[18]:

position_mds.plot_position_corrections(
    position_plot_folder,  # Folder to contain plot
    unit="km",  # Unit for the x and Y axes
    box_size=5,  # Size for the box containing the inner array
    scaling=250,  # scaling to be applied to corrections
    display=True,
)

[2026-03-19 15:41:37,237]     INFO   astrohack:  Module path: /export/home/arya/work/Holography-1022/astrohack/src/astrohack

../_images/tutorials_locit_tutorial_36_1.png

Finally, when we are certain that our results are good we can then export the fit results to an ASCII file that is formatted for input by the VLA parminator software.

[19]:

position_mds.export_results_to_parminator(
    "ant_pos_cor_24-10-14.PAR",  # name of the output parminator file
    ant=["ea06", "ea01", "ea05"],  # Selected moved antennas
    correction_threshold=0.001,  # Threshold for valid corrections in meters (i.e. minimum value for correction to appear in parminator file)
)

print("Parminator file contents:\n")
for line in open("ant_pos_cor_24-10-14.PAR"):
    print(line[:-1])

[2026-03-19 15:41:38,209]     INFO   astrohack:  Module path: /export/home/arya/work/Holography-1022/astrohack/src/astrohack
Parminator file contents:

W32, ,Y,$ 0.0055
W32, ,Z,$-0.0016
W40, ,X,$ 0.0026
W40, ,Y,$ 0.0034
W40, ,Z,$-0.0011
MAS, ,Y,$ 0.0097
MAS, ,Z,$-0.0015

[20]:

if parallel:
    client.close()

Antenna position correction tutorial¶

Download Tutorial data¶

Position and locit Data File API¶

Setup Dask Local Cluster¶

Extract locit¶

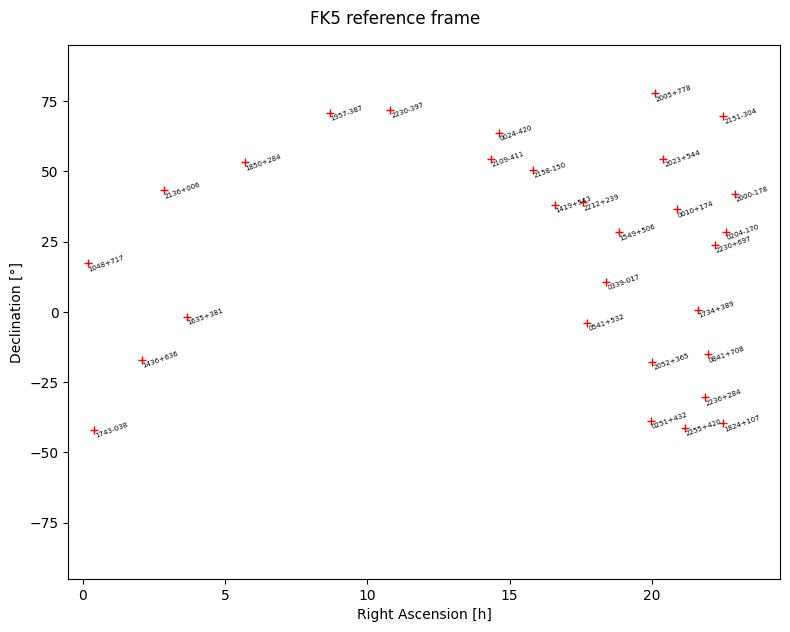

Inspecting the Sources in the dataset¶

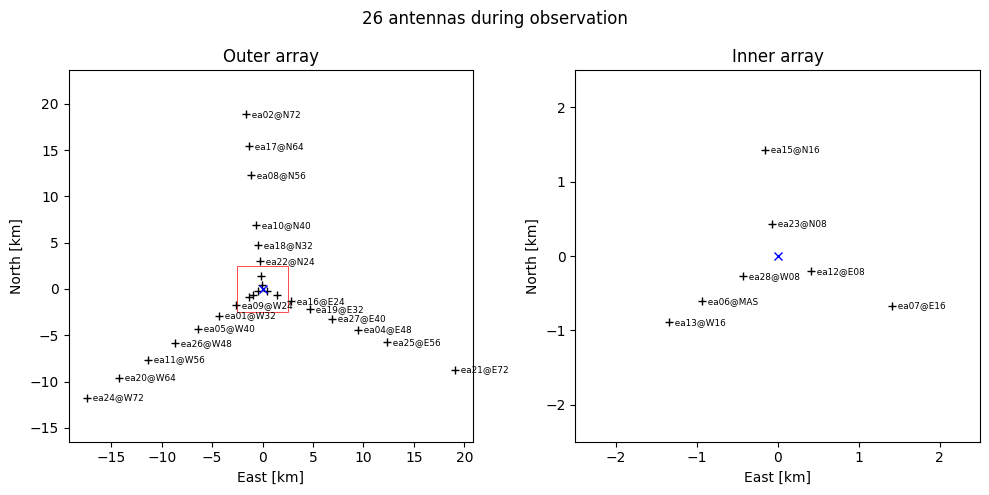

Inspecting the array configuration in the dataset¶

Locit¶
